Camião de transporte de madeira novo, Camião grua Volvo FH

Weight range: from 7.5t

-

Front suspension: Independent (mechanical)

-

Rear suspension: Leaf springs (pneumatic)

-

KMT uses more than 15 years of experience to improve the production of forestry trucks. State-of-the-art equipment and attention to detail allow us to deliver the highest quality forestry trucks.

Timbertek steel and Alucar aluminium supports.

PALFINGER EPSILON manipulators

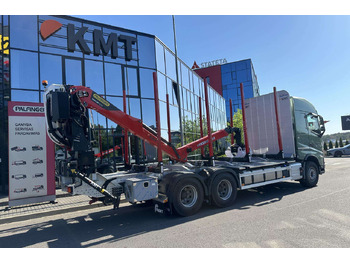

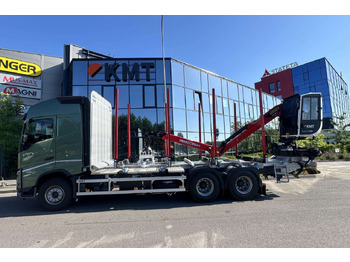

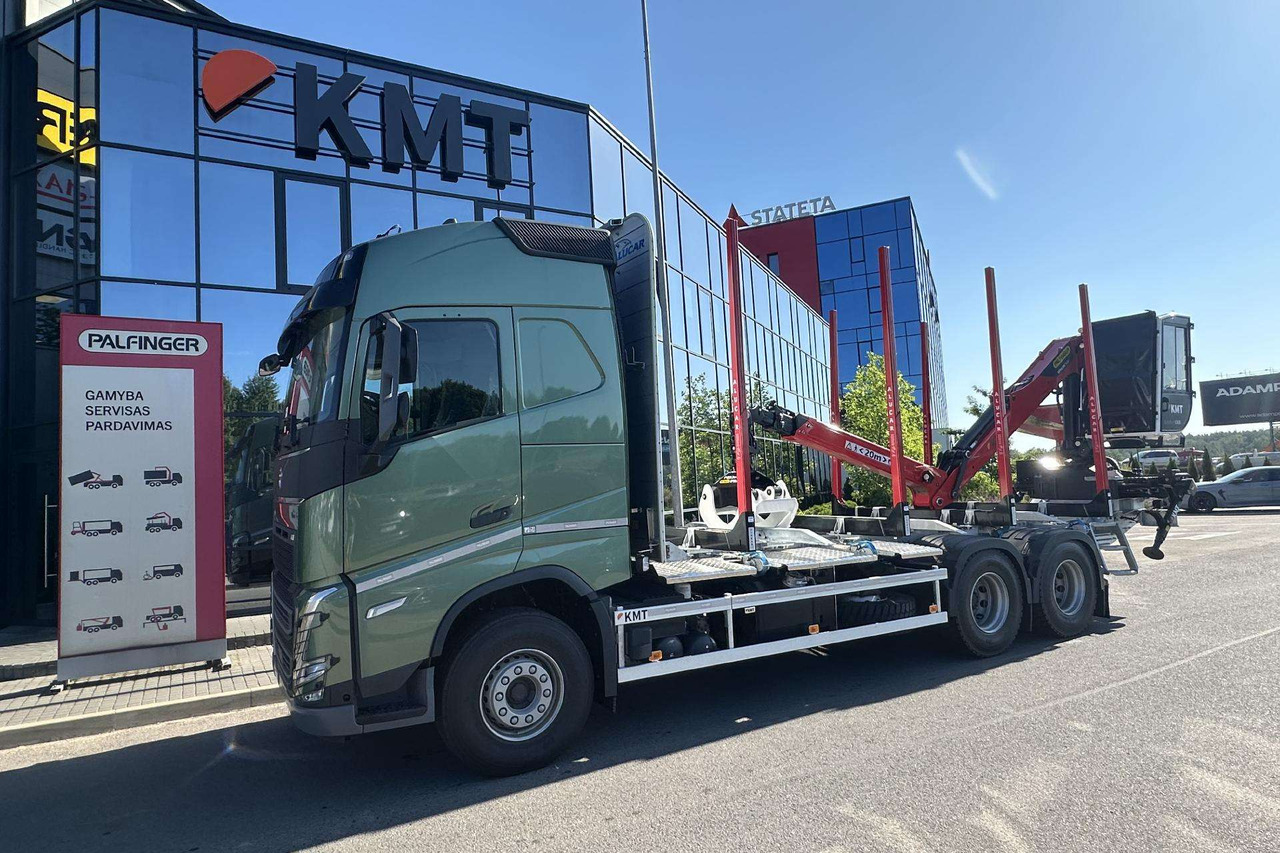

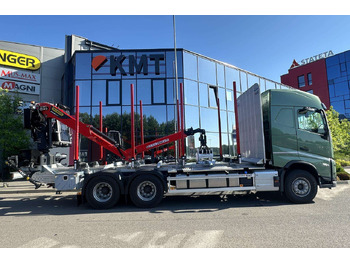

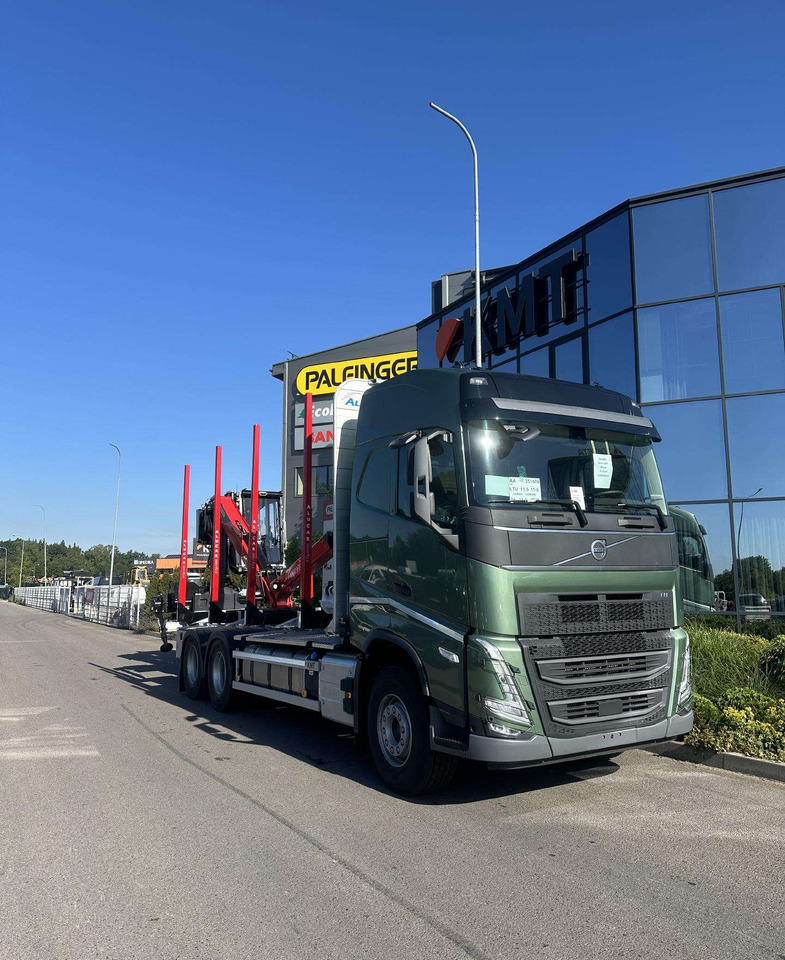

WE HAVE A VOLVO FH500 FORESTRY TRUCK READY FOR SALE

MODEL: TL12L97 CAH

lifting moment 120 kNm,

boom turning moment 28kNm,

boom reach 9,7m,

number of boom extensions: 2,

variable capacity hydraulic system.

45 degree angle closing support legs,

protection for the main lifting cylinder fitted,

emergency braking system (CE),

hydraulic hoses routed inside the telescopic boom,

crane colour red (RAL 3020) primed with KTL technology,

operating instructions in Lithuanian, English, spare parts catalogue

manufacturer's certificate,

crane mounting bolt kit,

Crane complies with European Union requirements (CE, EN12999);

4-point rotator suspension,

integrated hours counter with service interval indicator,

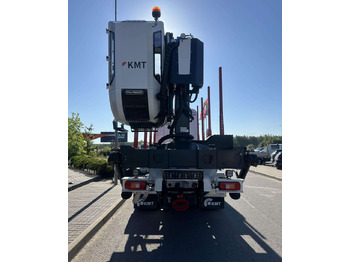

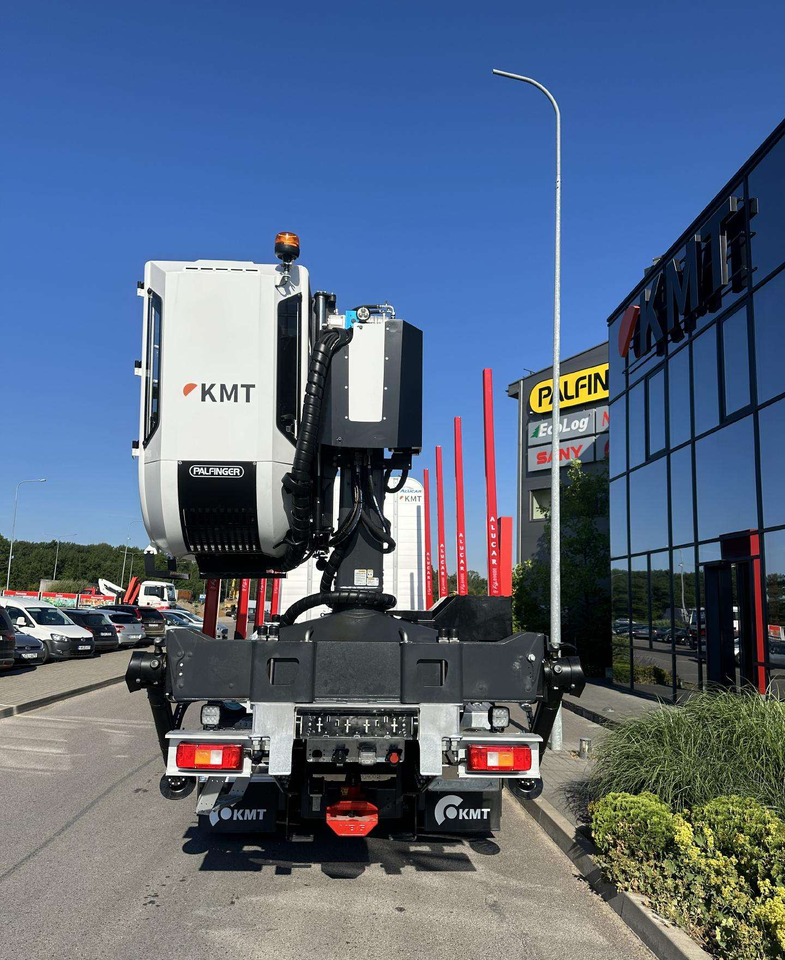

CAH - crane operator's cab - controls: two hydraulic joysticks and two pedals. 6 crane hydraulic functions

6 hydraulic pipes mounted inside the column. Electrical cables around the crane column. The distributor is mounted on the crane

column. Doors front and side, side windows openable, windscreen made of 8mm thick Lexan safety glass with

wash down and wiper, windscreen with safety cover, heated operator's seat, inner cab

interior lighting, RDS radio Blaupunkt with MP3, USB, CD and 2 speakers, hydraulically lifted cab

1100mm. 5 pcs LED lights on cab 3000 lm. Electric footrest control from cab, soft,

shock absorbing, heated operator's seat. Engine start/stop function, speed control, air conditioning, Webasto diesel self-contained heater, reinforced crane support leg brackets, increased support leg sole plane diameter to 350mm,

FG53S-V reinforced Epsilon timber grab, 0.5 m2 grab area,

10t rotator,

LS - HAWE 130l/min variable displacement hydraulic oil pump,

250l hydraulic oil tank with thermometer, oil pump,

hydraulic oil cooler 15,6 kW,

Shock absorbers for main and slewing cylinders, double action main boom function

Technical data of the aluminium wood superstructure "Alucar"

Timber body dimensions,

Length of the loading platform ~7200 mm,

Outer width 2550 mm,

Overall height of the timber deck 4000 - 4009 mm,

Pore frame: anodised aluminium Alucar reinforced, height 190 mm,

Steel rear lamp guards (canopy),

Front wall: anodised aluminium "Headboard" HD

Shovel holder,

Holder for crowbar,

Broom holder,

Work light holders at the bottom of the wall,

Fixed crane mounting console,

Hot-dip galvanised finish ,

Left-hand step ladder for climbing onto the superstructure,

Pipe set for variable capacity hydraulic system

Rungs: 4 pcs. "Alucar steel XL3, complete with locking devices, non-telescopic,

Outer height 2710 mm, inner height 2555,

Outer width 2550 mm, inner width at bottom 2300 mm,

Colour red.

1 piece aluminium storage box with stainless steel lockable door 700x500x500,

4+1 mm corrugated sheeting over fuel tank, oil tank, reservoirs, storage compartment, spare wheel, batteries,

Electrical wiring through superstructure for lights, crane, installation of side marker lights

4 pieces of 10m long load securing straps with quick release system. The belts are mechanically twisted into the bracket

Grab rack on timber floor integrated into floor protection crossbar, 1 piece hot-dip galvanised.

Floor protection slats - 2 pcs, hot-dip galvanised,

250 l hydraulic oil,

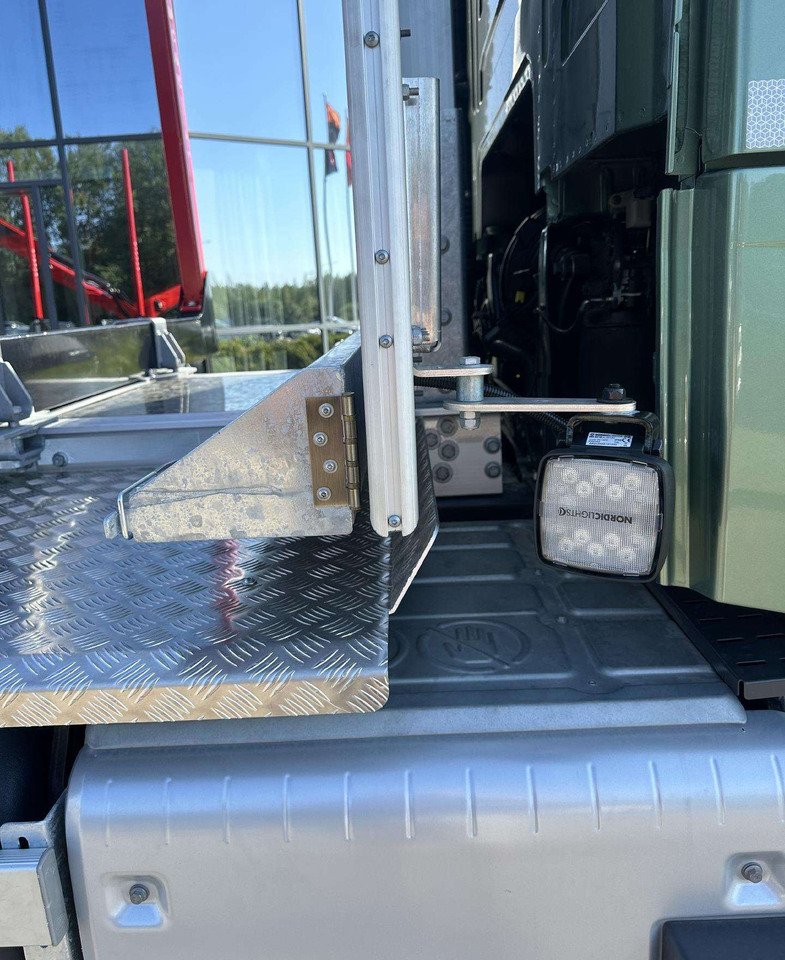

4 pcs. LED NordicLight superstructure work lights 2500lm: 2 pcs at the front of the superstructure at the bottom of the wall, 2 pcs at the superstructure

at the rear of the extension above the lights

Plastic licence plate frame and LED lighting,

10 mm thick plastic wood floor,

1 elongated galvanised steel storage box at the front of the woodwork for hydraulic hoses,

1 piece continuous rear mudguard
