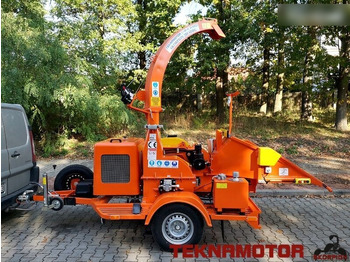

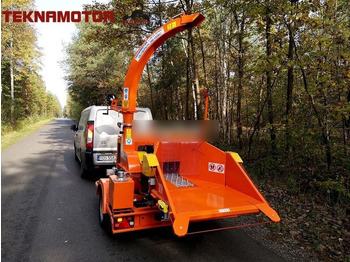

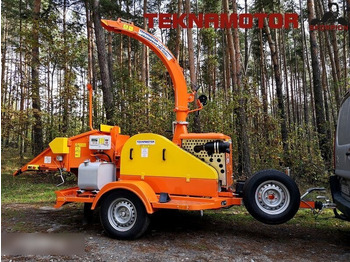

Estilhaçadora de madeira novo Teknamotor Skorpion 280 SDBG

SKORPION 280 SDBG is the smallest produced by Teknamotor drum-type chipper. Large loading table, 265 mm wide and 190 mm high inlet allows chipping branches with offshoots (with leaves and needles) as well as a round timber of the diameter up to 180 mm.

The feeding system consists of built on a rocker toothed roll of the diameter of 280 mm and a feeding table equipped with toothed 680 mm in length chain feeder, preceded by manually folded flap. This solution makes the loading much easier, improves the work of operator and increases the efficiency. Both - roll and chain feeder - are powered by hydraulic gear motors driven by own hydraulic pump installed on the chipper.

The propulsion system is a liquid-cooled diesel engine with capacity of 24,5 hp (three-cylinder) or 25 hp (four-cylinder) and as a standard fitted with a mask. Optionally the propulsion system is a due-cylinder air-cooled petrol engine with capacity of 37 or 32,6 hp. In order to maintain many hours of continuous operation, the chipper is equipped with a 40 liter fuel tank.

A sector-type drum with three cutting knives (one rotation of the drum for one full cut) allows to achieve a very high potential of the chipper.

As a standard, the chipper is equipped with a speed control of feeding which allows production of chips in the range of 5 - 25 mm in length. With this solution the Client can produce small chips which - after further processing on hammer mills - can be used to produce briquettes or pellets.

Installed screen ensures high regularity if chips. Chips are advanced from under the screen to the fan by a screw conveyor, than discharged thorough the ejection tube. The chipper is equipped with manually swiveled by 360° ejection tube.

As a standard, the chipper is also additionally equipped with one of the most advanced electronic system of work control available on European market automatically protecting the propulsion system of the machine against overload/excessive duty through temporary stopping the feeding unit. Easily editable software of the No-stress system provides a simple way to change the settings of the machine adapting it to individual needs. Preset "thick wood" and "thin wood" modes allow fast and easy change of the operation of the chipper in order to match the current material to be shred and increase the effectiveness of work. Total- and daily- hour meter is built into this system.

Chipper Skorpion 280 SDBG has got the EC Vehicle Type- Approval Certificate which allows registration of the machine and licensing it for the road traffic.

Overall dimensions (L x W x H) 3750 (4460)* x 1810 x 2300 (3100)* [mm]

Weight 1540 - 1620 [kg]

Branch diameter 180 [mm]

No of knives 3 cutting + 1 counter-knife

Feeding speed up to 22 [running meters/min]

Chipping capacity up to 10 [stère meters/h]

Chip width to 25 depends on material [mm]

Way of feeding - toothed roll and hydraulically driven feeder track

Drum diameter 420 [mm]

Screen 30x30 or 50x50 [mm]

Hopper dimensions (width x height) 265 x 190 [mm]

ENGINE TECHNICAL DATA (Diesel)

Engine model KOHLER-Lombardini KDW 1003 / KOHLER-Lombardini KDW 1404

Engine cubic capacity 1028 / 1375 [cm3]

Power of engine 24,5 / 25 [hp]

Type of cooling liquid

Type of fuel diesel

Fuel tank capacity 40 [l]

Start-up electric

ENGINE TECHNICAL DATA (Petrol)

Engine model BRIGGS&STRATTON Vanguard EFI 37 / LONCIN LC2V90FD

Engine cubic capacity 993 / 999 [cm3]

Power of engine 37 / 32,6 [hp]

Type of cooling air

Type of fuel petrol

Fuel tank capacity 40 [l]

Start-up electric

• - dimension after the loading table is unfolded, during operation.

- weight depends on equipment.

Standard equipment:

- Spare wheel.

- Swivelled by 360° ejection tube with deflector.

- Feeding table with a chain feeder.

- Electronic system of work control with hour meter.
