Rampa de carregamento novo Loading Ramp with with hydraulic tilting bridge - AZ RAMP - STAR LLO- 12 T.

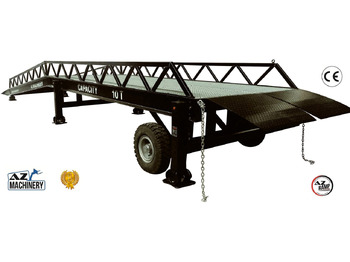

Mobile loading ramp with hydraulic tilting bridge

Brand: AZ RAMP - Type: STAR- LLO 12 T

Load capacity: 12 000 Kg

Dimensions: Total deployed length: 13.48 m

Total width: 2.07 m -Useful width (interior): 1.98 m

Inclined plane length / Inclined part: 7.48 m

Length of horizontal platform: 6.00 m

Inlet tray length: 2.08 m - Outlet lip length: 0.75 m

Side safety rails, height: 35 cm

Adjustable lifting height: Mini: 1.00 m - Maximum: 1.60 m

Slope: Mini: 13.36% - Maxi: 21.39%

The + Product:

Entrance plate and outlet lips hydraulically folding by manual pump. Lowering and mounting of the wheels via hydraulic crank. Intended for use with 3 and 4 wheel forklift. 4 Support legs with adaptive heads Side safety rails, height 35 cm, removable Anti-slip running surface in hot-dip galvanized grating 2 tie down chains included Large horizontal platform allowing the exit of long loads in upright position.

Applications: The STAR LLO model is very popular with logisticians and manufacturers, it also makes it possible to respond to certain constraints of operator training centers according to the new RECO R.489. Passing of categories 1 and 3 tests.
