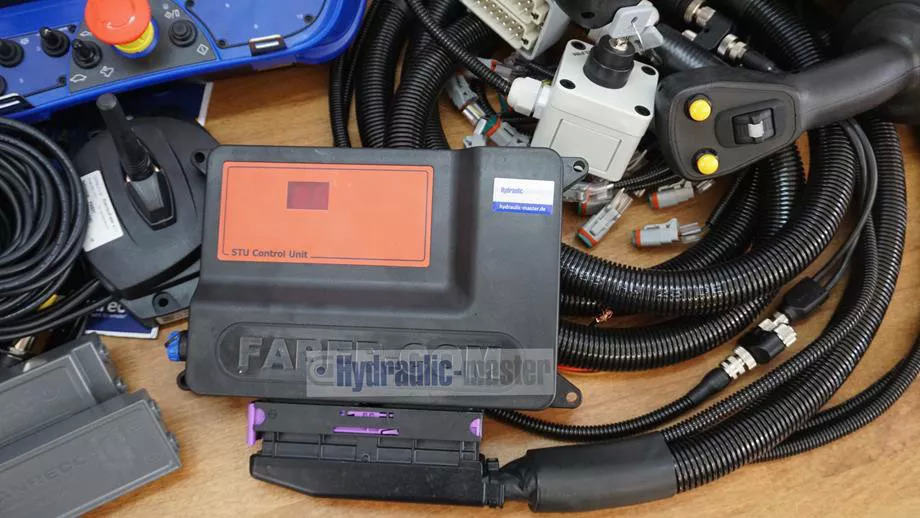

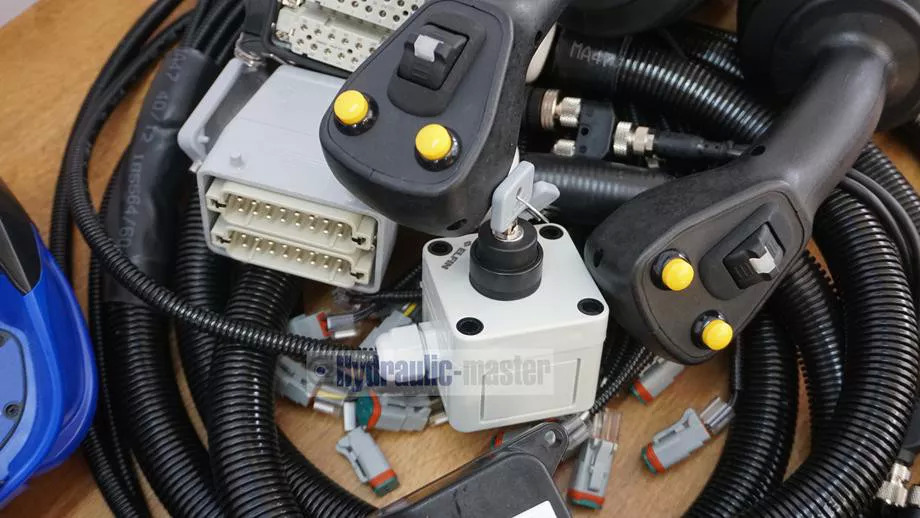

Leasing de CanBus 2 joysticks with radio control Scanreco G3 12 V Forest crane for Palms Farma BMF KTS

Publicado: 1ds.

Publicado: 1ds.

Cálculo pagamento de leasing

Taxa inicial

10%

20%

30%

40%

50%

Prazo do leasing, meses

Taxa de juros leasing: 10%

10%

15%

≈4 600EUR/mês*

Preço inicial 4 600 EUR

* Cálculo aproximado.

Lugar de posição

Poland, Paszowice 35E6

+4866339... Mostrar

+48663399034

Mais Informações

Technical data :

Remote Radio Control Scanreco:

-1–8 linear levers or 1–4 joysticks. » Various toggle switches, pushbuttons and rotary switches.

- Operator feedback by:

- LEDs (light emitting diodes)

- Monochrome display 2.5" with 128 x64 px

- Stop function in accordance with EN ISO 13849-1 cat. 3, PL d.

- Cable control: Standard length 10 meters / ~33 ft

- Frequency bands: 433–434, 902–928 MHz & 2.4 GHz (other frequencies available on request).

- Operating range >100m / >

~330 ft.

- Operational temperature: –20°C to +70°C

/ ~–4°F to +160°F.

- Protection category: IP65. » Dimensions: (WxHxD): 350 x160 x190 mm / ~13.78 x6.30 x7.48 in (w/o color display).

- Weight: 1.9–2.6 kg / ~4.2–5.7 lbs. including battery

G3 Receiver

- CANopen interface (other protocols on request).

- Supply voltage: 12/24 VDC.

- Operational temperature: –25°C to +70°C/ ~–15°F to +160°F.

- Cable control: Standard length 10 meters/ ~33 ft.

- 2 dump valve outputs. » 2 safety loops. » Stop function in accordance with EN ISO

13849-1 cat. 3, PL d.

- Frequency bands: 433–434, 902–928

MHz & 2.4 GHz (other frequencies available

on request).

- Two-way communication. » Connection cables with M12 connectors:3 meters / ~10 ft.

- Dimensions (WxHxD): 110x140x157 mm/~4.33x5.51x6.18 in (height incl. antenna).

- Weight: 1.2 kg / ~2.6 lbs.

- Protection category: IP 67.

Technical Specifications:

Power Supply Voltage : 10Vdc -30Vdc

Max current absorpion : 200mA ON/OFF output load

Wroking Temperature Range : -40°C + 70°C

Thumbwhell and analog input signals : 0.5 4,5 V

Abakig Uboyts Unoedabce: 11kOhm towards 2.5V

Max ON/OFF autput current 700mA

Push button power supply voltage: 5 VVdc stabilized, max 30 mA, schort circuit protected

Infress Protection Rating : IP65

Connections: Molex minifit Jr 4p. (CAN and supply) + 10p. (aux inputs)

Technical Specifications:

Power Supply Voltage : 10Vdc÷30Vdc (inner 5x20 8A fuse type F8A)

Current absorpion : 300mA + load outputs (max 7.5A)

Wroking Temperature Range : -20 ÷+ 70 C

Supply for external poterntiometers: +5V - max current 50mA

PWM minimum current range : from 100 to 2500 mA

PweM maximum current range: from 100 to 2500mA

PWM frequency : 50-60-70-85-100-125-150-200-250-300 Hz

Analog inputs impedance: 11 KOhm towards 2.5V

Overlall dimensions with connector mounted: 256x210x45mm

Drill interasis : 242x142mm (n. 4 holes of 6mm diameter)
