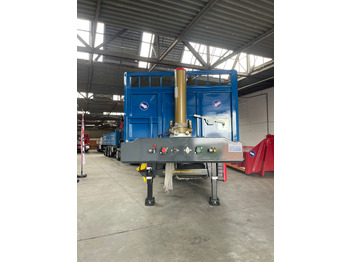

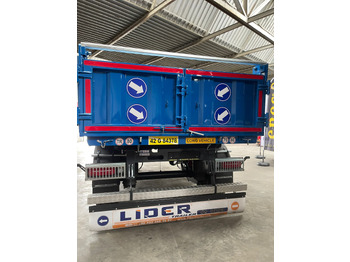

Leasing de LIDER Kiepwagen 2 Assen

General Specifications:

Number of Axles: 2

Load Capacity: Typically between 18,000 kg and 26,000 kg, depending on design and materials.

Gross Vehicle Weight (GVW): Up to 38,000 kg, depending on regulations and configuration.

Length: 8 - 10 meters (may vary)

Width: Standard 2.5 meters

Height: 3 - 4 meters (including the bed)

Construction:

Chassis: Made from high-quality steel (e.g., S355), typically reinforced to carry heavy loads.

Body Material: Steel or aluminum, depending on the intended use. Steel is generally used for heavy materials, while aluminum is lighter and allows for a higher payload.

Load Bed:

Type of Bed: V-shaped or rectangular, depending on the type of material being transported.

Volume: Typically ranges from 15 m³ to 30 m³.

Tipping Angle: Usually between 45 to 50 degrees, to ensure efficient unloading.

Bed Control: Hydraulic system with a strong cylinder (e.g., 3-stage cylinder).

Axles and Suspension:

Axles: Heavy-duty axle configuration, typically 9 tons per axle.

Suspension: Air suspension or leaf spring suspension, depending on design and user preference.

Tires: 385/65 R22.5 or similar, suitable for heavy-duty use.

Brake System:

Type: Pneumatic braking system, typically equipped with ABS.

Parking Brake: Manual or automatic via air pressure.

Additional Features:

Hydraulic System: PTO (Power Take-Off) driven for operating the tipper bed.

Lighting: LED lighting for better visibility and durability.

Options: Can be optionally equipped with side boards, cover systems (e.g., tarpaulins), additional toolboxes, etc.

Applications:

Use Cases: Commonly used in construction, infrastructure projects, and the agricultural sector for transporting heavy materials such as sand, gravel, asphalt, or agricultural products.
